Morphological Image Processing

Todd Goldfinger





Goal:  To implement binary dilation and erosion with a 3x3 structuring element.


            I implemented these algorithms in matlab.  Neither implementation follows the strict

definitions of dilation and erosion.  But they should behave the same as the definitions

as long as the structuring element is smaller than the object.  If the object is very small,

erosion will completely remove it.  All images are required to be binary (1 - white, 0 black).

And the origin will always be at the center of the structuring element.  I ran one erosion

and one dilation on figure 9.14a as a demonstration.  I used the following element for both

dilation and erosion.


Structure = [1 1 1

                   0 1 1

                   0 0 1]


It is clear where the image has been eroded.  It is more difficult to tell what happened with

dilation.  But, you should be able to see the extra 'mass' at the end of the nose.  And the area

where the hair meets the forehead has filled in some.



Fig. 1

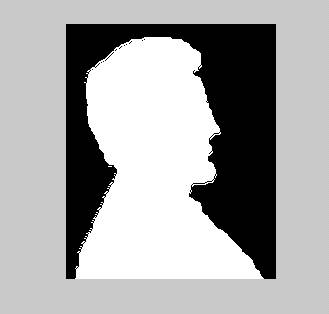

Top)      The original image with threshold at 1.

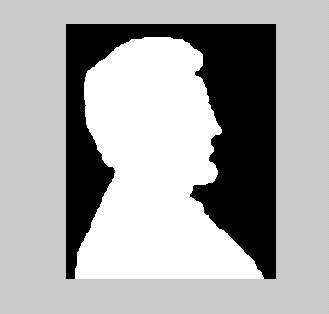

Middle) Eroded image.

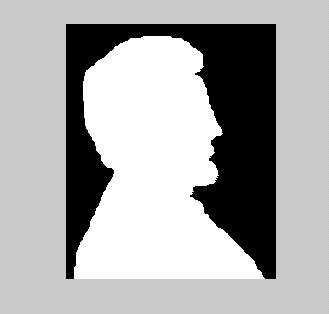

Bottom) Dilated image.




Erosion code

Dilation code


Below is some more matlab code to perform some routine set functions.

Although, these could in principle be used in dilation and erosion, none

were used in my implementation.

Set complementation

Set differencing

Set Intersection


next (boundary extraction)
